BERTHS

Title Document
Berthing Programme Dt. 09-12-2023 View / Download
Berthing Programme Dt. 08-12-2023 View / Download
Berthing Programme Dt. 07-12-2023 View / Download

INNER Habour - East Quay Berths

SI. NO.

BERTH

LENGTH

(M)

DRAFT

(M)

YEAR OF COMISSION

CARGO

EQUIPMENT

1.

EQ2-EQ5

2 berths

560.00

14.50

2019

·   Fertilizer

·   Fertilizer Raw materials

·   Steel

·   Multi-Cargo

Work order issued for installation of 1 no 100T(MHC)

MOBILE HARBOUR CRANE

2.

EQ6

280.00

11.00

1966

·      Iron ore

·      Caustic soda

·      Multi-cargo

4 Nos. 2OT Capacity Electric wharf

Cranes

3.

EQ7

255.00

14.50

1995

·      Multi-Cargo

·      Iron ore

·      Thermal coal

1 no. 14OT HMC

INNER Harbour - West Quay Berths

4.

WQ1

212.00

13.50

1994

·      Multi-Cargo

·      Thermal Coal

·      Iron Ore and Sulphuric Acid

2 no. 140T

HMC’s are operational from WQ1 to WQ3 berths.

5.

WQ2

226.70

13.50

1992

·      Thermal Coal

·      Cooking Coal

·      Multi-Coal

6.

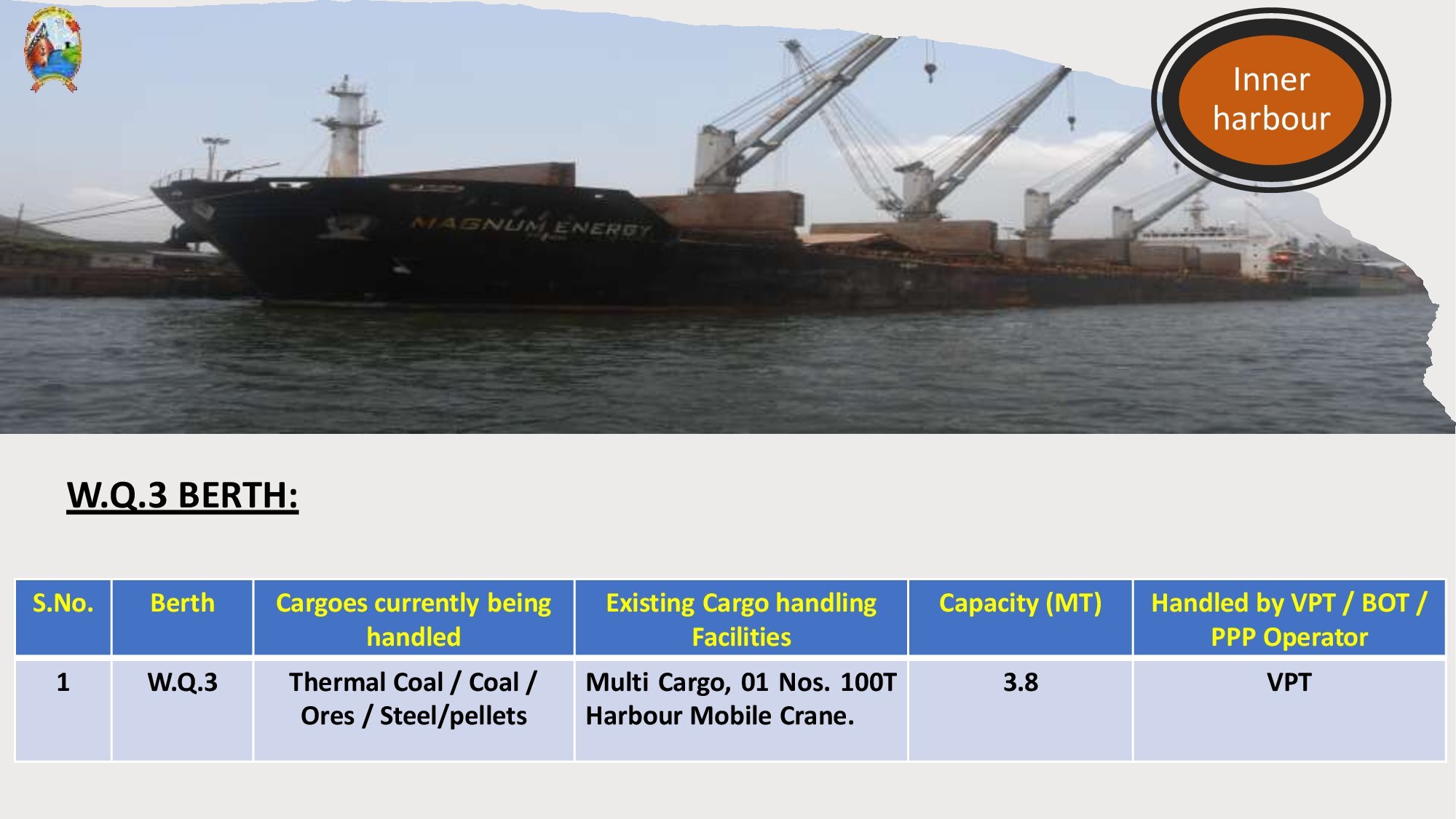

WQ3

201.12

13.50

1992

Coal

7.

WQ4

243.00

11.50

1965

·      Thermal coal

·      Cooking coal

·      Multi-Cargo

·      Caustic soda(NALCO)

Bulk cargos are being handled with ship cranes

Caustic Soda is handled through under ground pipeline

8.

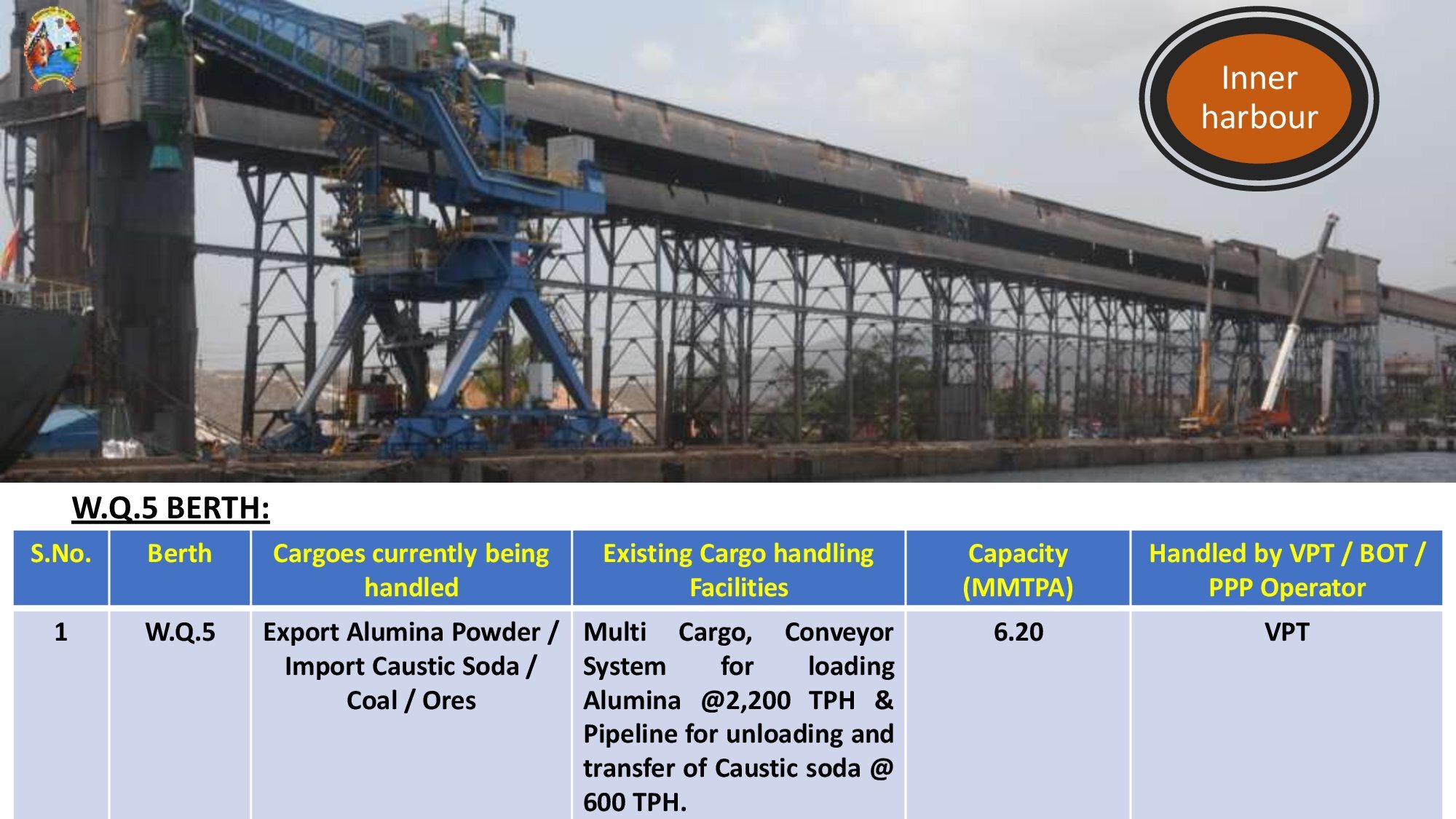

WQ5

241.70

11.50

1965

·      Alumina (NALCO)

·      Caustic Soda

Conveyor System for loading alumina

(2200TPH) and Caustic Soda (600TPH)

9

WQ6

255.00

14.00

2015

·      C.P.Coke

·      LAM Coke

·      Steel Multi-Cargo

2 Nos.

60T capacity Rail Mounted level luffing cranes.

Note:   #

                  ·         The WQ6 was awarded to M/s West Quay Multiport Pvt. Ltd. on 07.10.2011 on PPP.

                  ·         The project commissioned on 13.07.2015

                  ·         The Concessionaire stopped the operations since March, 2019

                  ·         The Concession Agreement stands terminated w.e.f. 31.05.2020

                  ·         Action initiated for fresh proposal for revamping of the existing WQ6 terminal under PPP mode.

                  ·         Actions have been taken for step-in on 20.10.2020 to utilize the stack yard.

TEFR is under finalization

10.

WQ7

280.00

14.50

2018

·      Manganese Ore

·      Coal and Coke

·   Multi-Cargo

1 no 100 T HMC is operational at WQ7 & WQ8 berths. (Mechanization is in progress) Another 100T HMC shall be deployed by June 2021

11.

WQ8

280.00

14.50

2018

·      Manganese Ore

·      Limestone

·      Multi-Cargo

INNER Harbour - Western Arm

12.

Fertilizer Berth

167.64

10.06

1957

·      Fertilizer

·      Liquid Ammonia

·      Molten Sulphur

Direct discharge through pipeline to tank farms.

13.

OR-I

183.00

10.06

1957

·      POL

·      Styrene Monomer and Chemicals

Direct discharge through pipeline to tank farms.

14.

OR-II

183.00

9.57

1957

·      POL

·      Styrene

·      Monomer and Chemicals

Direct discharge through pipeline to tank farms.

15.
OR-III
180.00
11.00
2021

·      POL

·      Styrene

·      Monomer and chemical

Direct discharge through pipeline to tank farms.

OUTER Harbour

16.

OSTT

408.00

17.00

1985

·      Crude oil and Petroleum products

Three unloading arms with discharge capacity of 5500 tonnes per hour

17.

LPG

371.00

14.50

1998

·      LPG and petroleum products

Marine uploading arms, Pipelines and Direct
































    Click here for more on  berths by VPA

  1.  Details of the restrictions and allowable drafts of the vessels in inner harbour and outer harbour
